The cyclone water film desulfurization dust collector (quick-mounted module type) is optimized and improved on the basis of the traditional granite water film tower. The steel plate, high-strength anti-infiltration acid-proof castable and granite are uniformly poured into various functional modules, and the surface is hoisted. Compared with the traditional Ma Shi water film tower, it has the characteristics of convenient installation, short construction time, low maintenance cost and long service life. It is suitable for various forms of boilers and kiln.

The cyclone water film desulfurization dust collector is mainly composed of a cylinder body, an equipment inlet and outlet, an upper water tank, a water injection coil, a lower overflow hole and a cleaning hole.

The working principle is that the airflow containing dust and sulfide enters the cylinder through the inlet flue, and the alkaline water solution is taken into the cylinder from the upper part of the equipment by the water pump, so that an alkaline water film is formed on the inner wall of the cylinder from above. Under the flow, the flue gas enters tangentially from the lower part of the cylinder and rotates upward in the cylinder. The gas containing dust and sulfide always contacts the water film on the inner wall of the cylinder under the action of centrifugal force, and the dust-containing gas is wetted by the water film and vulcanized. The neutralization reaction is carried out with the alkaline solution, and flows to the bottom of the precipitator with water, and is discharged from the overflow hole to achieve the effect of dust removal and desulfurization;

The dust after dedusting enters the sedimentation tank and is recycled;

The purified gas is taken out through the upper part of the cylinder.

Features

1. The interior is made of corrosion-resistant, wear-resistant and high-temperature resistant granite, processed into a circular curved plate, and the internal structure is smooth and flat to ensure the integrity of the inner wall water film.

2. The outer protective steel plate is poured with high-strength, high-temperature and acid-resistant castables in the middle, which greatly increases the strength and service life of the equipment.

3. The upper tank is made of ceramic structure, ensuring no water leakage during use.

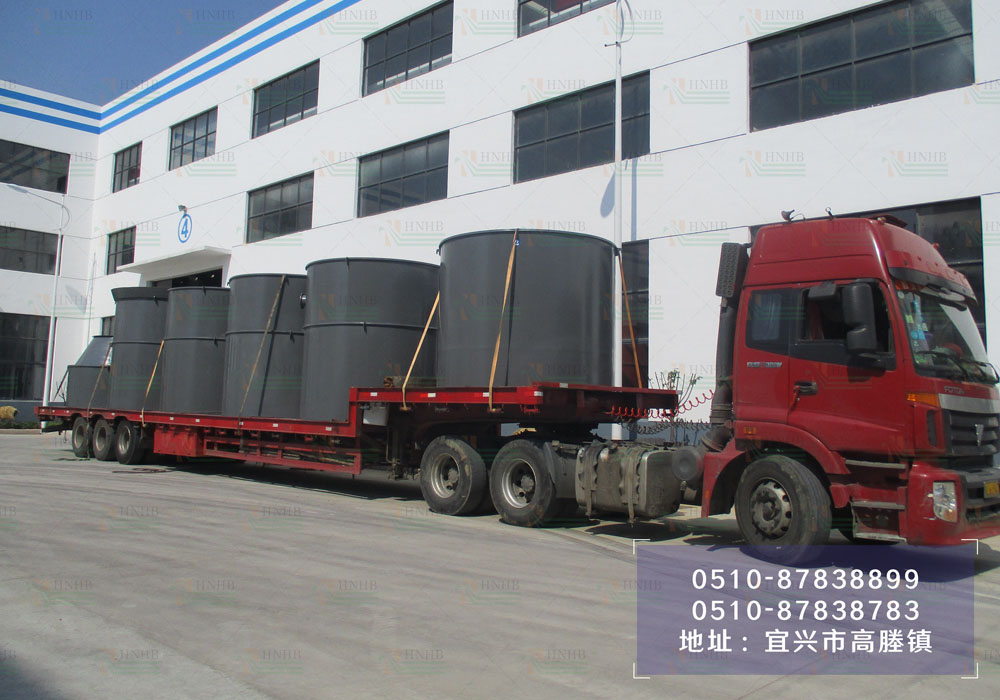

4. The height of each module does not exceed 2 meters, reducing the crane cost required for installation.

5. Each module interface has a concave-convex joint, which is sealed with high-strength and corrosion-resistant materials to ensure no air leakage.

Device parameters:

Dust removal efficiency: 80-95%

Desulfurization efficiency: 72-89%

Equipment resistance: <700Pa, including venturi spray device <1000pa;
